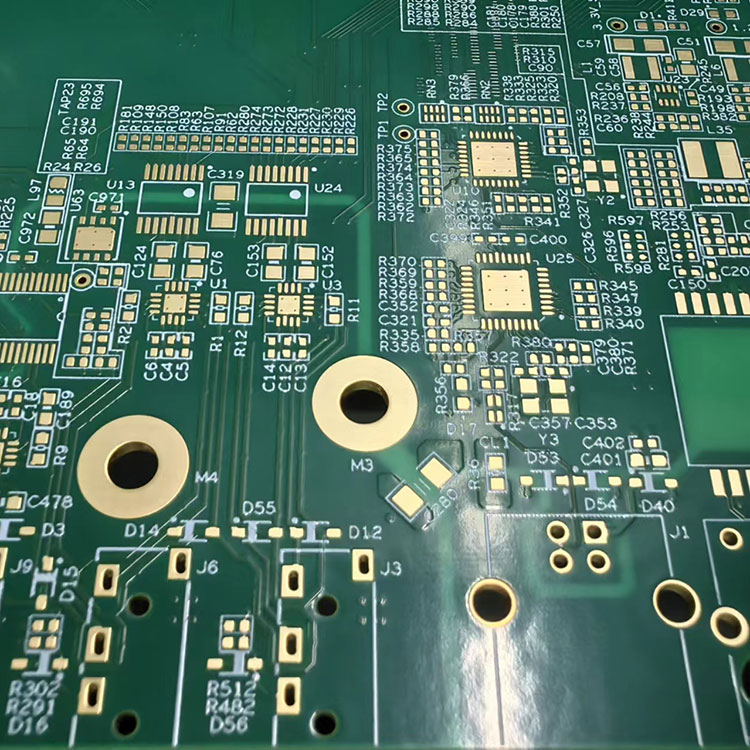

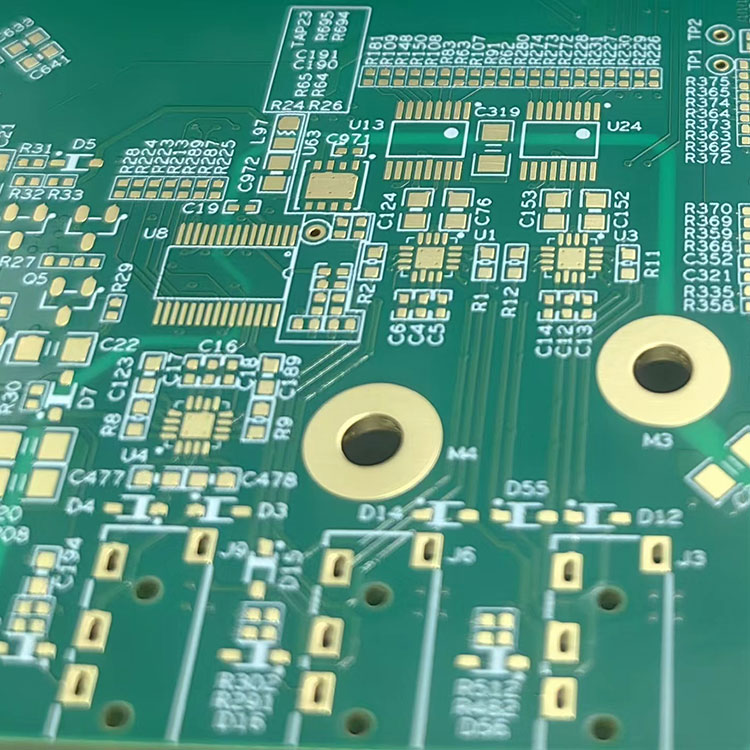

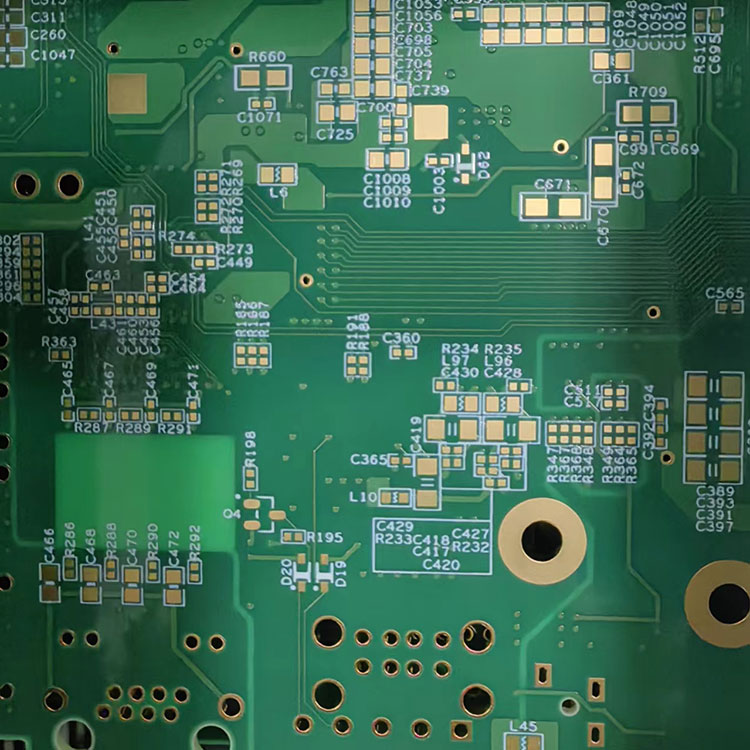

HDI PCB

The Hayner PCB 's main products HDI PCV HDI PCB (High-Density Interconnect PCB), manufactured in China by a highly respected manufacturer and dependable supplier, embodies the latest advancements in printed circuit board technology. This innovative product is designed to meet the ever-growing demands for smaller, faster, and more complex electronic devices, offering exceptional performance and quality.

HDI (High Density Interconnect) circuit boards PCB


As a premier manufacturer and supplier, Hayner PCB employs cutting-edge production methods and premium materials to craft HDI PCBs with unparalleled density and interconnectivity. The HDI technology enables the creation of finer line widths and spaces, as well as increased layer counts, resulting in PCBs that are both compact and highly functional.


Quality is at the core of everything Haina does, and the HDI PCB is no exception. Rigorous quality control measures are implemented throughout the manufacturing process to ensure that every PCB meets or exceeds industry standards. This commitment to excellence results in HDI PCBs that are reliable, durable, and capable of supporting the most advanced electronic designs.


Whether you're developing smartphones, wearable devices, medical equipment, or other high-tech products, Hayner PCB 's   HDI PCB  is the perfect choice for your high-density interconnect needs. Its superior performance and quality make it an invaluable asset for designers and engineers seeking to create the next generation of electronic devices.


Hayner PCB - advanced high-quality HDI PCB manufacturer

Hayner PCB, as a prominent China-based manufacturer and supplier of High Density Interconnect (HDI) PCBs, offers advanced and high-quality products that meet stringent industry standards. With our technical expertise in the electronic field, we ensure competitive prices without sacrificing quality, making us a reliable partner for all your PCB needs.



What is HDI PCB


HDI is abbreviation of high density interconnect,circuit boards are printed circuit boards with a higher wiring density per unit area than traditional printed circuit boards.

HDI Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter. They have a higher circuitry density than traditional circuit boards.

HDI boards, one of the fastest growing technologies in PCBs.

Nowadays, HDI PCBs are increasingly being used, and have made a big difference to technological advancement in electronics industry.



Advantage of HDI PCB


The primary benefit of HDI printed circuit boards is the capability to “do more with less”;

1. Smaller & faster :Printed circuit board technology has been evolving with changing technology that calls for smaller and faster products.

HDI boards are more compact and have smaller vias, pads

, copper traces and spaces. As a result, HDIs have denser wiring resulting in lighter weight, more compact, lower layer count PCBs. Rather than using a few PCBs in a device, one HDI board can house the functionality of the previous boards used.

2. Cost-effectiveness: HDI process can reduce the cost of the PCB to a certain extent。When the density of PCB increase beyond 8 layers,the cost of fabrication with HDI technology will be lower than that of traditional complex lamination process. To reducing size and weight of multi-layer boards, and needing function and reliability of products, HDI PCB is one good solution.

 when properly planned out, overall costs are reduced due to the lower number of necessary layers and smaller sizes/fewer number of needed boards when compared to standard PCBs.

3. Faster time-to-market: Design efficiencies in HDI PCB production mean faster time-to-market. Because of the easy placement of components and vias and electrical performance, it takes a shorter amount of time to go through the design and testing process for HDI PCBs.

4. 4.Better reliability: Microvias have much better reliability than typical through holes due to the use of a smaller aspect ratio; they are more dependable than through holes, granting HDIs outstanding performance with better materials and parts.



Applications of HDI PCB:


The benefits explained above make these HDI PCBs suitable for use in a number of applications, whichlike Mobil Phone, Notebook computer,Medical Equipment,Automotive electronics and others.


HDI PCB Manufacturing and Assembly Capabilities


Specifications

Capability

HDI PCB Material

FR-4, HI Tg, Rogers, Taconic, Argon etc.

HDI PCB layer

1-30 layer

HDI PCB types

single/double-sided, multi-layer

Copper Thickness

1-6oz

Board Thickness

S/D 0.2-0.7mm, Multi-layer:0.40-7.0mm

Surface finish

HASL,OSP,Immersion gold,Flash Gold Finger

Min. Hole Size

0.2mm mechanical drill

4mil laser drill

Min.Line Spacing /

Min.Line Width

6mil

6mil

Min. Solder Mask Bridge

0.08mm

Max. Production Size

400x510mm

Impedance control

50Ω ±5Ω, 90Ω ±9Ω, 100Ω ±10Ω

Aspect ratio

15:1

Via Plugging Capability

0.2-0.8mm

PCB Standard

IPC-II Standard

Warp & Twist

0.75%

Certificate

ISO9001.IATF16949.RoSH.UL.

Quality Control

X-ray, AOI Test, Function Test (100% Test)

Delivery

PCB 3-7 Days, PCBA 2-3 weeks



Hayner PCB Production Ability:


Seven SMT production lines --10 millions points/day

Four THT production lines --- 0.50million points /day

Three Final assembly lines ----15,000pcs/day

One Aging room  --------------2,000PCS/day

Three Spraying lines
