This high-quality Rail Train Control and Monitoring System PCB Assembly is specifically engineered to meet the rigorous demands of the railway industry, providing reliable control and monitoring functions for rail train operations. Hayner PCB, as a reputable manufacturer, utilizes advanced manufacturing techniques and rigorous quality control processes to ensure that every PCB assembly is of the highest quality, ensuring reliable performance and longevity in even the most challenging environments. As a trusted supplier, Hayner PCB offers customized solutions tailored to specific requirements, ensuring seamless integration with existing railway systems. With its commitment to excellence and a strong focus on customer satisfaction, Hayner PCB is the go-to choice for businesses seeking top-quality Rail Train Control and Monitoring System PCB Assemblies from China.
Rail Train Control and Monitoring System PCB Assembly
PCB Assembly Name: Rail Train PCB Board Monitor PCBA Assembly
Industry Area:Rail Train Transportation
One-Stop Service:PCB design, component procurement,PCB manufacturing, assembly and testing all into our own factory plant.
Hayner PCB, one-stop servicer with manufacturing experiences of PCB production in China. This PCB Assembly, rail train control and monitoring system PCB assembly, is designed specifically for high speed rail train applications, ensuring reliable train control and monitoring functions.
Our two factory plants are working more than 10 years long, technical engineering team , specially trained technical workers, and comprehensive quality monitoring system, could provide our customers high-quality and cost-effective PCB Assembly products.
The assembly is made using high-grade components and undergoes rigorous quality control tests to ensure its durability and performance. With our expertise in railway technology, we are confident that the Hayner PCB Rail Train Control and Monitoring System PCB Assembly will meet and exceed your expectations.

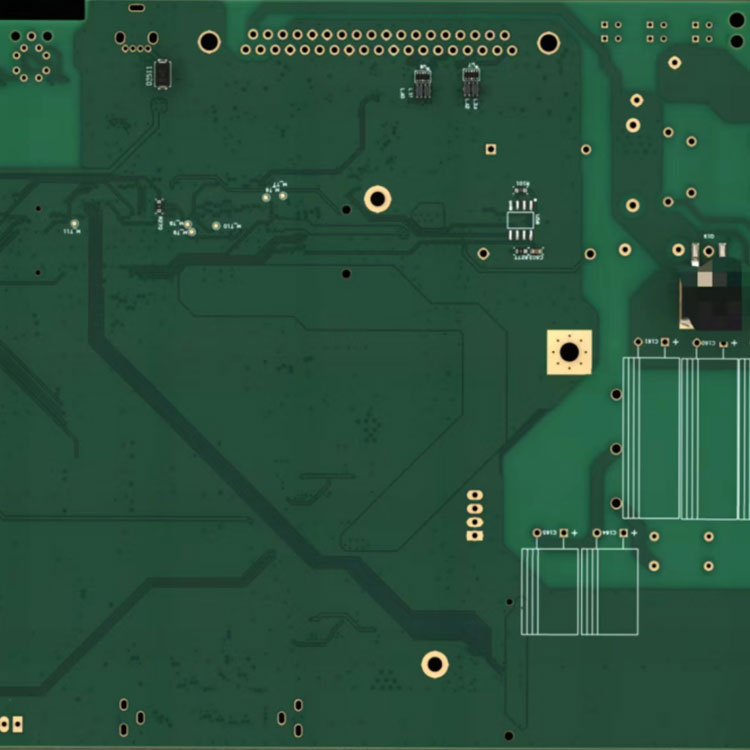

Rail Train Control and Monitoring System PCB Assembly
|
Specification |
Capability |
|
PCB Material |
FR-4,CEM-1,CEM-3,Aluminium base board, FPC |
|
Surface finish |
HASL,OSP,Immersion gold,Flash Gold Finger |
|
Layers |
1-30 layer |
|
Copper Thickness |
1-60z |
|
Board Thickness |
D/S 0.2-0.7mm |
|
multilayer:0.40-7.0mm |
|
|
Min. Hole Size |
0.2mm mechanical drill |
|
4mil laser drill |
|
|
Min.Line Width |
4mil |
|
Min.Line Spacing |
4mil |
|
Min. Solder Mask Bridge |
0.08mm |
|
Max. Production Size |
400x510mm |
|
Aspect ratio |
15:1 |
|
Via Plugging Capability |
0.2-0.8mm |
|
PCB Standard |
IPC-II Standard |
|
Warp & Twist |
0.75% |
|
Certificate |
ISO9001, IATF 16949, RoHS,UL |
|
PCBA Quality Control |
X-ray, AOI Test, Function Test (100% Test) |
|
Specifications Requirements |
Three-Proofing Paint Process |
|
Delivery |
PCB 3-7 Days, |
|
PCBA 2-3 weeks |
Seven SMT production lines --10 millions points/day
Four THT production lines--- 0.50million points /day
Three Final assembly lines ---- 15,000pcs/day
One Aging room --------------2,000PCS/day
Three Spraying lines
